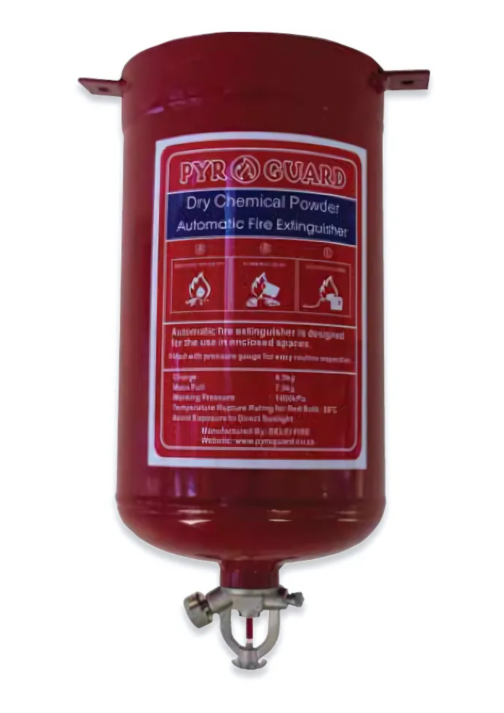

4.5Kg Dry Chemical Powder Type, Automatic Fire Extinguisher (Ceiling Unit)
The 4.5Kg Dry Chemical Powder Type Automatic Fire Extinguisher (Ceiling Unit) is an efficient and reliable fire suppression solution designed for automatic activation at temperatures above 68°C. Ideal for high-risk areas, this ceiling-mounted unit offers quick and powerful fire suppression in the event of a fire.
Description
The 4.5Kg Dry Chemical Powder Type Automatic Fire Extinguisher (Ceiling Unit) is engineered for automatic fire suppression in environments that require continuous fire protection. With a 4.5Kg charge of dry chemical powder, it offers effective suppression for Class A, B, and C fires, ensuring safety in areas such as server rooms, industrial spaces, and high-risk commercial environments.
Constructed from durable ST12 steel, the extinguisher boasts a 1.5mm wall thickness for superior strength and reliability. The unit’s automatic valve is activated by a 68°C thermal bulb, ensuring the discharge of the extinguishing agent when temperatures rise above the safety threshold, allowing for fast and efficient fire suppression without manual intervention.
With a discharge time of over 10 seconds and a range of up to 6 meters, the extinguisher is capable of covering a wide area, extinguishing fires quickly and effectively. Its working pressure of 1400kPa and hydrostatic test pressure of 2100kPa ensure the extinguisher’s durability and readiness in the event of a fire emergency.
Equipped with a Bourdon tube pressure gauge, the unit provides easy monitoring of internal pressure, ensuring that the extinguisher is always ready for activation when needed. This automatic fire extinguisher is also rated for a wide operating temperature range from -30°C to +60°C, making it suitable for various environmental conditions.
Specifications:
- Charge: 4.5Kg
- Fire Extinguisher Complete Full Weight: 7.5Kg
- Fire Extinguisher Complete Empty Weight: 3Kg
- Cylinder Empty Weight: 2.9Kg
- Cylinder Length: 345mm ± 2
- Out-cylinder Diameter: 177mm ± 1
- Volume: 6.28L
- Min. Wall Thickness: 1.5mm
- Material: ST12
- Corrosion Protection: Yes
- Working Pressure: 1400kPa
- Hydrostatic Test Pressure: 2100kPa
- Bursting Pressure of Cylinder: >5500kPa
- Safety Device: 2100 ~ 2600kPa
- Size / Type of Pressure Gauge Fitted: Automatic valve with 68°C thermal bulb, ⅛” x 27 NPT / Bourdon Tube
- Working Temperature: -30°C ~ +60°C
- Packing Size: 19 x 19 x 45cm
Key Features:
- Automatic Activation: Triggers discharge when the temperature exceeds 68°C, ensuring timely fire suppression.
- Durable Construction: Made from high-strength ST12 steel for added durability.
- Wide Fire Rating: Effective for Class A, B, and C fires.
- Long Discharge Range: Discharges up to 6 meters for extensive coverage.
- Reliable Monitoring: Equipped with a Bourdon tube pressure gauge for easy pressure checks.
- Flexible Operation: Suitable for a wide temperature range from -30°C to +60°C.
The 4.5Kg Dry Chemical Powder Type Automatic Fire Extinguisher (Ceiling Unit) is a vital fire protection tool for businesses and homes requiring automated fire suppression in high-risk areas. Its reliable design ensures optimal safety with minimal maintenance.
