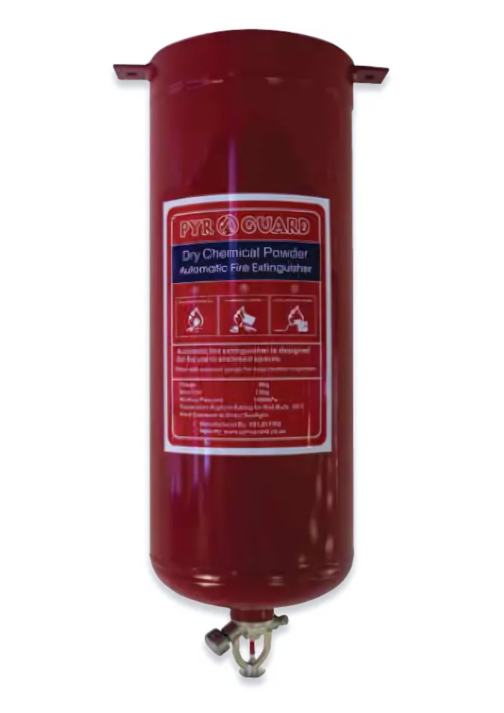

9Kg Dry Chemical Powder Type, Automatic Fire Extinguisher (Ceiling Unit)
The 9Kg Dry Chemical Powder Type Automatic Fire Extinguisher (Ceiling Unit) offers automated fire suppression for high-risk environments. With a 9Kg charge and an automatic valve triggered by a 68°C thermal bulb, it delivers reliable fire protection, especially in enclosed spaces.
Description
The 9Kg Dry Chemical Powder Type Automatic Fire Extinguisher (Ceiling Unit) is specifically designed to provide automatic fire suppression in environments that require continuous monitoring and protection. This ceiling-mounted unit features a 9Kg charge of dry chemical powder, ensuring rapid and effective fire suppression in the event of a fire, particularly in high-risk or enclosed areas.
Made from durable ST12 steel, the extinguisher’s 1.5mm wall thickness ensures structural integrity, and its corrosion protection allows for long-lasting performance. The automatic valve is activated by a 68°C thermal bulb, triggering the release of the fire extinguishing agent when temperatures rise beyond the safety threshold. This system offers hands-free operation and is ideal for areas where manual activation is impractical.
With a discharge time of over 12 seconds and a range of up to 8 meters, this unit provides powerful fire suppression over a large area. It operates efficiently under a working pressure of 1400kPa and can withstand hydrostatic test pressure up to 2100kPa.
The unit’s Bourdon tube pressure gauge provides accurate monitoring of internal pressure, ensuring the extinguisher is always ready for use when needed. Rated with a fire classification of 27A 144B, it effectively handles Class A, B, and C fires, making it suitable for a variety of industrial, commercial, and residential applications.
This automatic fire extinguisher operates within a temperature range of -30°C to +60°C, providing flexibility and reliability in diverse environmental conditions.
Specifications:
- Charge: 9Kg
- Fire Extinguisher Complete Full Weight: 13Kg
- Fire Extinguisher Complete Empty Weight: 4Kg
- Cylinder Empty Weight: 3.9Kg
- Cylinder Length: 485mm ± 2
- Out-cylinder Diameter: 177mm ± 1
- Volume: 9.8L
- Min. Wall Thickness: 1.5mm
- Material: ST12
- Corrosion Protection: Yes
- Working Pressure: 1400kPa
- Hydrostatic Test Pressure: 2100kPa
- Bursting Pressure of Cylinder: >5500kPa
- Safety Device: 2100 ~ 2600kPa
- Size / Type of Pressure Gauge Fitted: Automatic valve with 68°C thermal bulb, ⅛” x 27 NPT / Bourdon Tube
- Working Temperature: -30°C ~ +60°C
- Packing Size: 19 x 19 x 59cm
Key Features:
- Automatic Fire Suppression: Triggered by a thermal bulb at 68°C for hands-free operation.
- Durable Construction: Made from ST12 steel for strength and durability.
- Wide Fire Rating: Effective for Class A, B, and C fires.
- Large Discharge Range: Discharges over a distance of 8 meters.
- User-Friendly Monitoring: Equipped with a Bourdon tube pressure gauge for easy maintenance checks.
- Reliable in Extreme Temperatures: Operates in a wide temperature range from -30°C to +60°C.
The 9Kg Dry Chemical Powder Type Automatic Fire Extinguisher (Ceiling Unit) is an essential fire safety solution, offering continuous protection with minimal intervention. Ideal for areas with high fire risks, this unit provides reliable, automated fire suppression when you need it most.
